Gebouwd vanaf 1981, 28 stuks
Dit schip is in feite een vergrote Contessa 32
Naast dit type 38 zijn er nog 5 schepen gebouwd ook als Contessa 38, maar met behulp van een mal van een Swan.

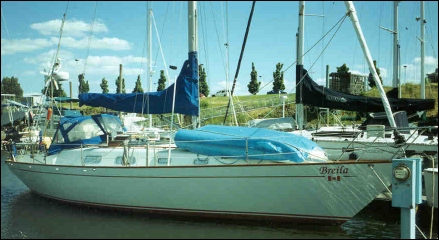

CONTESSA 38 (ALAN-WILLIAMS)
| Hull Type: | Fin with rudder on skeg | Rig Type: | Masthead Sloop | |||
| LOA: | 38.29′ / 11.67m | LWL: | 30.06′ / 9.16m | |||
| Beam: | 11.31′ / 3.45m | Listed SA: | 602 ft2 / 55.93 m2 | |||
| Draft (max.) | 6.67′ / 2.03m | Draft (min.) | ||||
| Disp. | 15900 lbs./ 7212 kgs. | Ballast: | 7716 lbs. / 3500 kgs. | |||
| SA/Disp.: | 15.29 | Bal./Disp.: | 48.53% | Disp./Len.: | 261.33 | |
| Designer: | David Alan-Williams | |||||
| Builder: | Jeremy Rogers | |||||
| Construct.: | FG | Bal. type: | Lead | |||
| First Built: | 1981 | Last Built: | # Built: | 28 | ||
| AUXILIARY POWER (orig. equip.) | ||||||
| Make: | Watermota | Model: | Sea Panther | |||
| Type: | Diesel | HP: | 30 | |||
| TANKS | ||||||
| Water: | 70 gals. / 265 ltrs. | Fuel: | 20 gals. / 76 ltrs. | |||
| RIG DIMENSIONS KEY | ||||||
| I: | 47.56′ / 14.50m | J: | 15.42′ / 4.70m | |||
| P: | 41.00′ / 12.50m | E: | 11.48′ / 3.50m | |||
| PY: | EY: | |||||
| SPL: | ISP: | |||||
| SA(Fore.): | 366.69 ft2 / 34.07 m2 | SA(Main): | 235.34 ft2 / 21.86 m2 | |||
| Total(calc.)SA: | 602.03 ft2 / 55.93 m2 | DL ratio: | 261.33 | |||
| SA/Disp: | 15.29 | Est. Forestay Len.: | 50.00′ / 15.24m | |||
| BUILDERS (past & present) | ||||||
| More about & boats built by: | Jeremy Rogers Ltd. | |||||
| DESIGNER | ||||||
| More about & boats designed by: | David Alan-Williams | |||||
| RELATED LINKS | ||||||
| Yacht Brochures (Original Scanned Manufacturers’s brochures) | www.yachtbrochures.co.uk | |||||
| SEE ALSO: | ||||||
| Related Boat: | DAWN 39 | |||||
| NOTES | ||||||
|
||||||
